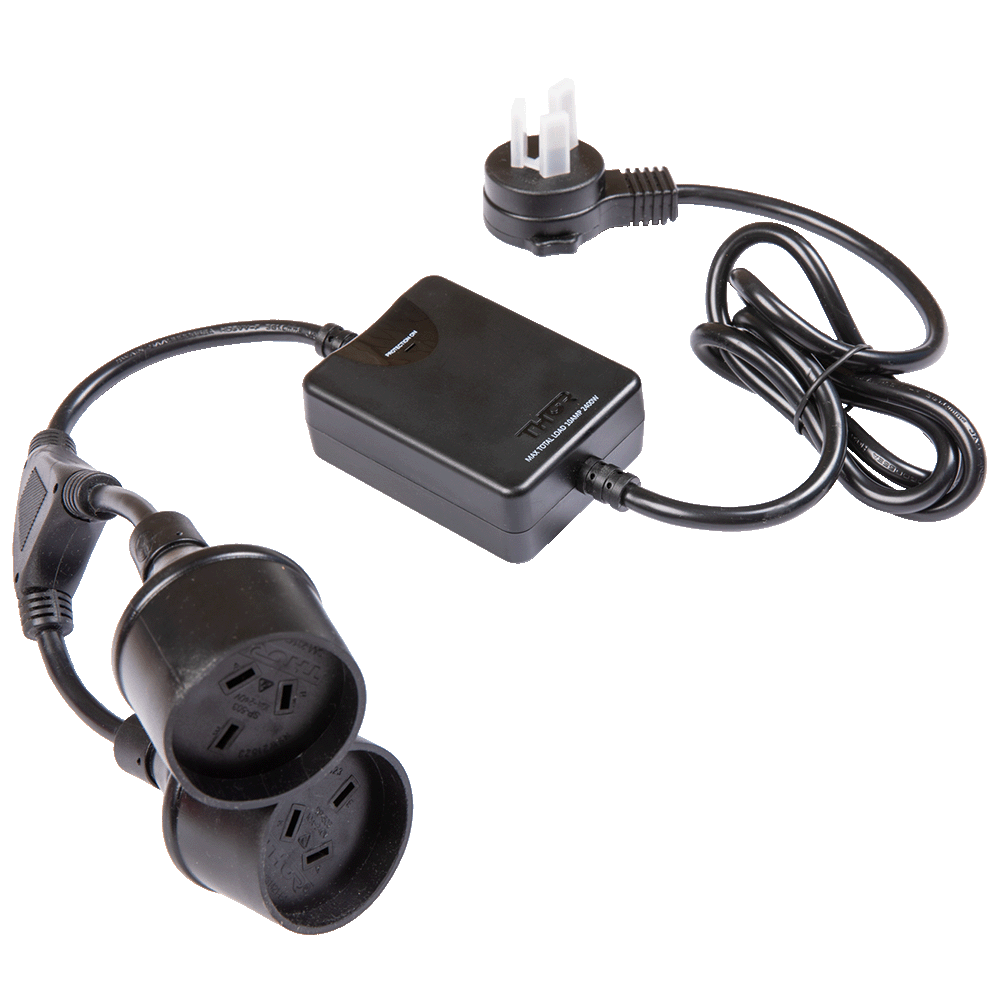

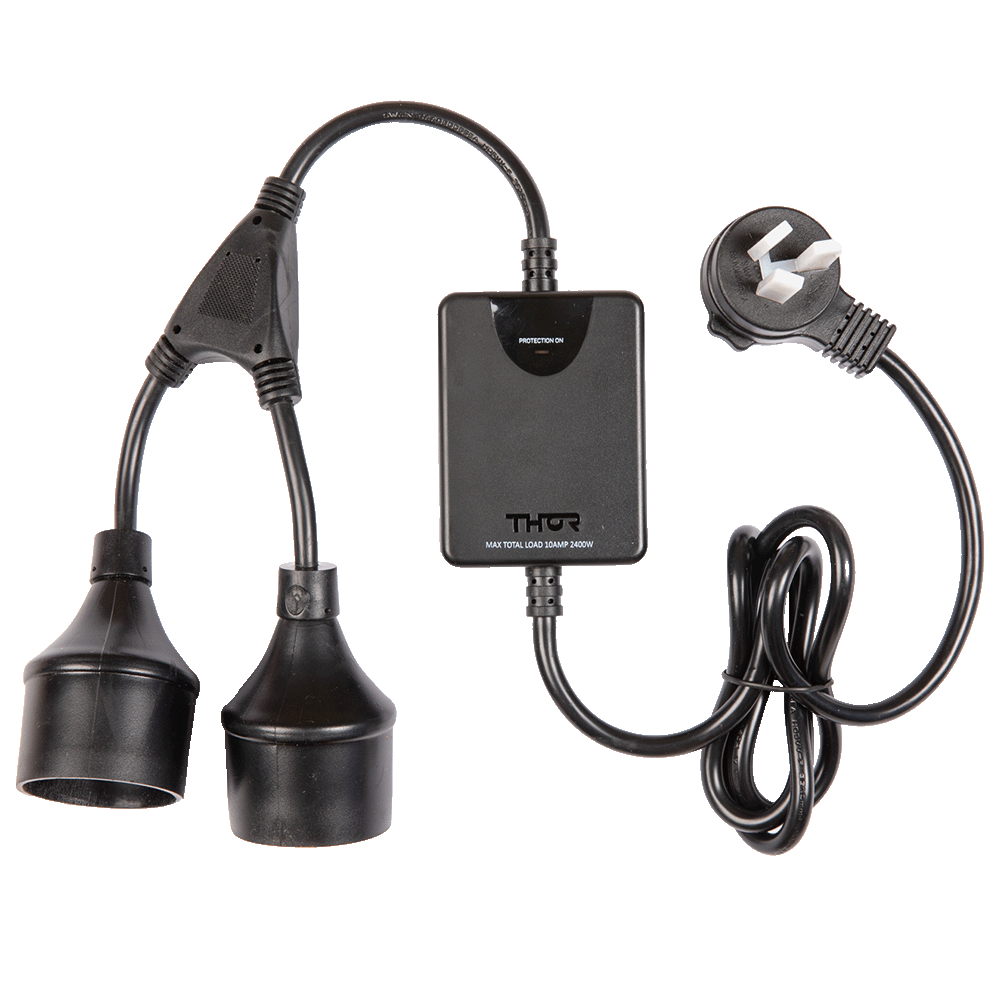

ALPHA A2M is the affordable way to have power protection for your most valuable electrical equipment. The new slimline design now means you can have surge protection and filtration anywhere.
ALPHA A2Mis the latest addition to the Thor Technologies product range and includes newly developed Mains Super Filter (MSF) technology.
Including Flameproof MOV
Flameproof MOV ensures the main protection components will not catch fire while protecting from dangerous surges. The choice of Flameproof components and the added flame retardant housing safeguards ensures your home and family will always be safe.
TV Mountable
The ALPHA A2M’s slimline design enables it to be installed on a TV mount bracket, so it is out of sight.
This Product is Designed to Protect the Following Types of Products:
- 4K/8K TVS
- Computers
- Gaming
- Appliances
- Whitegoods
- Sewing Machines
Inside The Brain:
The MSF, Mains Super Filter technology, is aimed at ensuring only the cleanest power is delivered to your investment. This benefit means dirty power is not robbing your connected equipment of its performance. The effects of unwanted dirty power or interference is reduced or eliminated.
Product Features

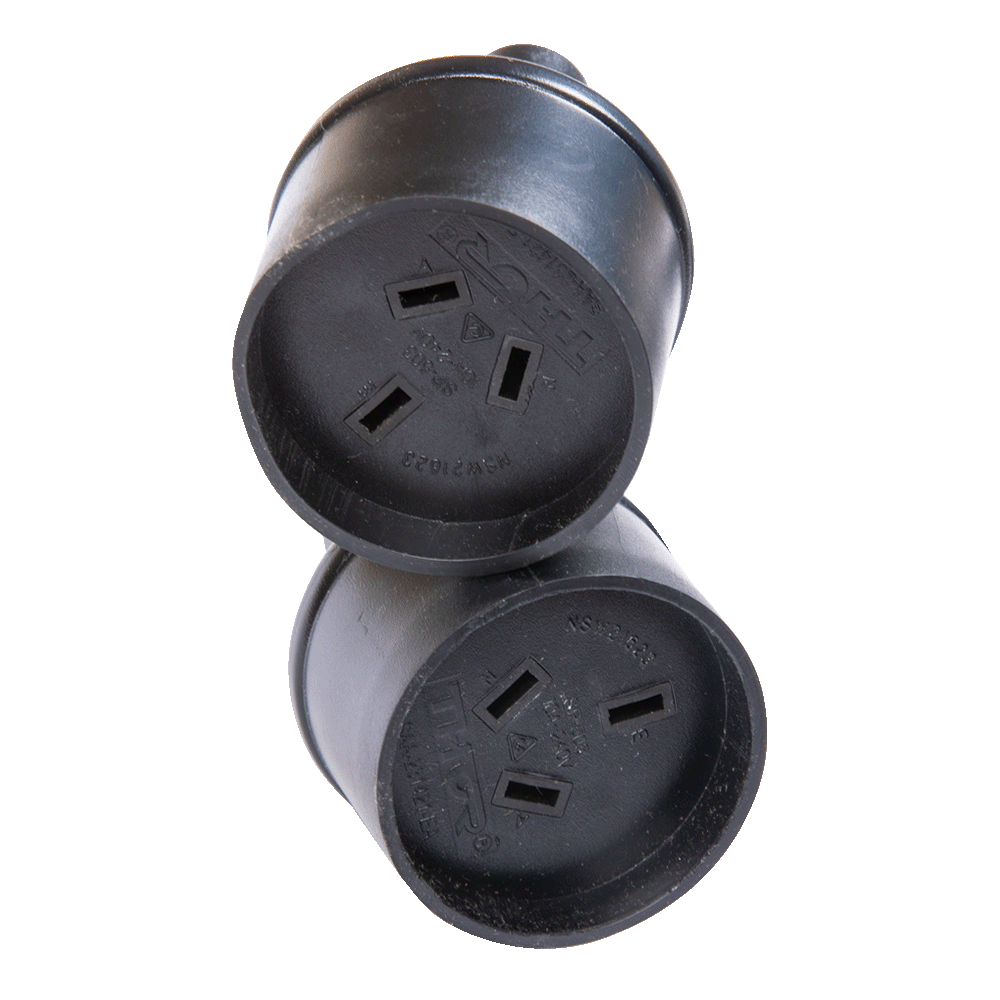

- Dual inline protected outlets
- Flame Proof MOV
- Flame Retardant Housing
- Slimline Design
- Power LED
- 600m Cable Length
- Alarm Buzzer: Detects if surge circuit is damaged.
Technical Specifications
-
Product Code: A2M
-
Product Dimensions: 81mm (L) x 61mm (W) x 31mm (H)
-
Supply voltage 230-240/VAC 50/Hz
-
Maximum current rating 10 amps/2400 W (VA)
-
Clamping/Let Through Voltage 510VAC
-
Reaction time less than 1 nanosecond
-
Maximum energy dissipation 2115 Joules (equivalent to 705 Joules using UL1449 standard)
-
Protection modes (all 1 outlets protects on all 3 conductors): Active/ Neutral, Active/Earth, Neutral/Earth
-
Total number of protected AC outlets: 1
-
Earth potential rise protection
-
Earth leakage range less than 1 milli amp
-
Operating conditions: Indoor/AC mains
-
Operating temperatures: -10C/+60C
-
Cable length: 1.0m and 300mm
